IDM DC-1500 Rig 7 – 1500 HP SCR Walking Rig

CAT IV 2025 certified 1500 HP SCR walking rig — Corpus Christi TX, Contact for Pricing

1,500
Horsepower
SCR DC Drive
POA
Price
Contact for pricing
2025
CAT IV
Certified
Corpus Christi
Location
Texas
IDM DC-1500 Rig 7 – 1500 HP SCR Walking Rig
CAT IV 2025 certified 1500 HP SCR walking rig — Corpus Christi TX, Contact for Pricing

IDM DC-1500 1500 HP SCR drilling rig with hydraulic walking system, freshly CAT IV certified in 2025. Features 136' telescoping mast with 750,000 lb hookload, Cummins KTA50 engines, Canrig 350-ton AC top drive, dual BOMCO F-1600 mud pumps at 7,500 PSI, and Orion hydraulic walking system. Complete auxiliary package included. Contact Total Drilling Supply for pricing.

Technical Overview

Key Equipment Specifications

🗼

Mast & Structure

  • MastIDM 136' Telescoping (S/N M-5699)
  • Hook Load750,000 lbs
  • SubstructureIDM 22' Hydraulic Telescoping
  • Rotary Load750,000 lbs
  • Setback450,000 lbs simultaneous
  • Top Drive Capacity350-Ton accommodation
⚙️

Drawworks & Engines

  • DrawworksIDM DC-1500 (Asset DW012)
  • DW Power1,500 HP via (2) GE/GM 800-HP DC motors
  • DW Hours/Rebuild5,629
  • Engines(3) Cummins KTA50 x 1,470 HP
  • Generators(3) AVK/WEG 1,050 KW with SCR
🛢️

Drilling & Walking

  • Top DriveCanrig 350-Ton AC, Model 350 (S/N 454)
  • Mud Pumps(2) BOMCO F-1600, 7,500 PSI
  • Mud System848 bbl total active
  • Walking SystemOrion Hydraulic HPU Skid
  • BOP13-5/8" 10,000 LB Double Ram + Single Ram + Annular
  • RotaryEMSCO 37½" independent 800-HP motor
Equipment Gallery

Rig Photos

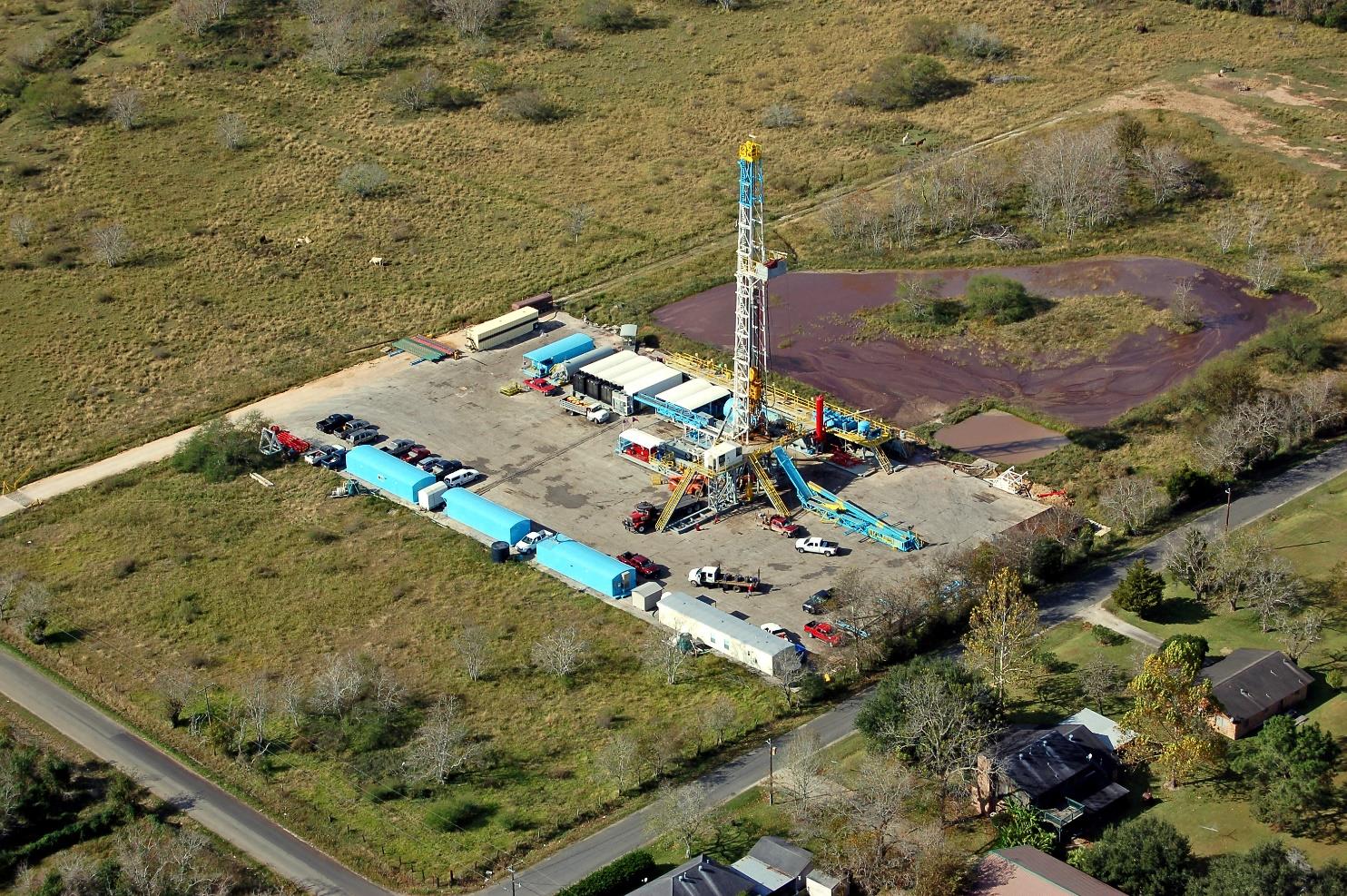

IDM DC-1500 Rig 7 — Corpus Christi TX
IDM DC-1500 Rig 7 — Corpus Christi TX
Capabilities

Key Advantages

01

CAT IV 2025 Certification

Freshly CAT IV certified in 2025 — no recertification cost or delay before deployment, with full inspection records. Contact Total Drilling Supply for pricing.

02

Hydraulic Walking System

Orion hydraulic walking system (HPU skid and trailer) enables pad drilling operations without rig-down moves between well slots, increasing efficiency and reducing mobilization cost.

03

Complete Ancillary Package

Includes Canrig automatic catwalk, five-star wireline unit, driller's cabin with Varco electronic driller, crew quarters, fuel tank (12,000 gal double-wall), and full auxiliary pump skids.

Complete Data

Full Equipment Status

Drawworks

ManufacturerIDM Equipment
ModelIDM DC-1500 (Asset DW012)
Power1,500 HP via (2) GE/GM 800-HP DC Traction Motors
Hours/Rebuild5,629

Engines & Generators

Engines(3) Cummins KTA50 Diesel @ 1,470 HP each, Air Start
Engine S/Ns3316778 (50010 hrs), 33167782 (49456 hrs), 33167860 (49144 hrs)
Generators(3) AVK/WEG 1,050-KW unitized with SCR Skid

Mast & Substructure

MastIDM 136' Telescoping (S/N M-5699)
Hook Load750,000 lbs
SubstructureIDM 22' Hydraulic Telescoping
Rotary Load750,000 lbs
Setback450,000 lbs simultaneous

Rotating & Hoisting

RotaryEMSCO Type 37½", (1) 800-HP DC Traction Motor
Top DriveCanrig 350-Ton AC Model 350 (S/N 454), ROCKIT
Overhead String400-Ton 6-Sheave Block, 12-line, 1-3/8"

Mud System

Mud Pumps(2) BOMCO F-1600 Triplex, 7,500 PSI
Mud Pump MotorsEMD DC Traction @ 1,600 HP
MP2 Hours9,173
Mud Capacity848 bbl total active (2x 424 bbl covered tanks)
Solids ControlBrandt shakers, degasser, desilter

Well Control

BOP(1) 13-5/8" 10,000-LB Shaffer Double Ram + (1) Single Ram + (1) 5,000-LB Annular
Accumulator6-Station Consolidated API 16E
Choke Manifold4' x 4" 10,000-LB

Walking System

ManufacturerOrion
TypeHydraulic Walking System
ComponentsHPU Skid and Trailer

Interested in This Rig?

Contact Total Drilling Supply LLC for pricing and to arrange inspection.
