Rig 90 — 3000HP AC Ultra

Rig 90 — 3000HP AC Ultra Pad-Drilling Rig with Gardner Denver PZ-2400 Pumps

3,000
Horsepower
HP
POA
Price
Contact for pricing
Rig 90 — 3000HP AC Ultra
Rig 90 — 3000HP AC Ultra Pad-Drilling Rig with Gardner Denver PZ-2400 Pumps

Rig 90 is a high-spec 3000HP AC pad drilling rig featuring a 147-ft Lee C. Moore HMRII hydraulically-raised mast with 1,300,000 lbs static hook load, Pacific Rim 3000HP AC drawworks, three Gardner Denver PZ-2400 (2400HP) mud pumps, Tesco 750-ton top drive, and a 1,761-bbl mud system with Derrick Dualpool shakers.

Technical Overview

Key Equipment Specifications

⚙️

Drawworks

  • Make / ModelPacific Rim 3,000 HP AC
  • Input Power(2) Amerimex 1,500 HP induction motors
  • Drill Line1-5/8 in
  • Emergency Brake(2) Svendborg BSFK caliper
🗼

Mast & Substructure

  • Mast147 ft Lee C. Moore HMRII, hydraulically raised
  • Static Hook Load1,300,000 lb
  • Racking Capacity24,000 ft of 5-7/8 in DP
  • Floor Height30 ft
  • Clear Height24 ft
  • Rotary Load1,315,000 lb
  • Walking SystemLee C. Moore Rig Rover (X, Y, rotate)
🔩

Power

  • Generator Sets(5) Caterpillar 3512, bi-fuel, 1,475 HP (1,100 kW) each
  • ControlsGE (Converteam) VFD
  • Total Available7,375 HP (5,500 kW) continuous
  • FuelDiesel / natural gas
💧

Mud System

  • Mud Pumps(3) Gardner Denver PZ-2400 Triplex
  • Pump Rating2,400 HP, 7,500 psi, 14 in stroke
  • Mud Tanks3 tanks, 1,761 bbl total
  • Shakers(4) Derrick Dualpool
🔁

Top Drive & Handling

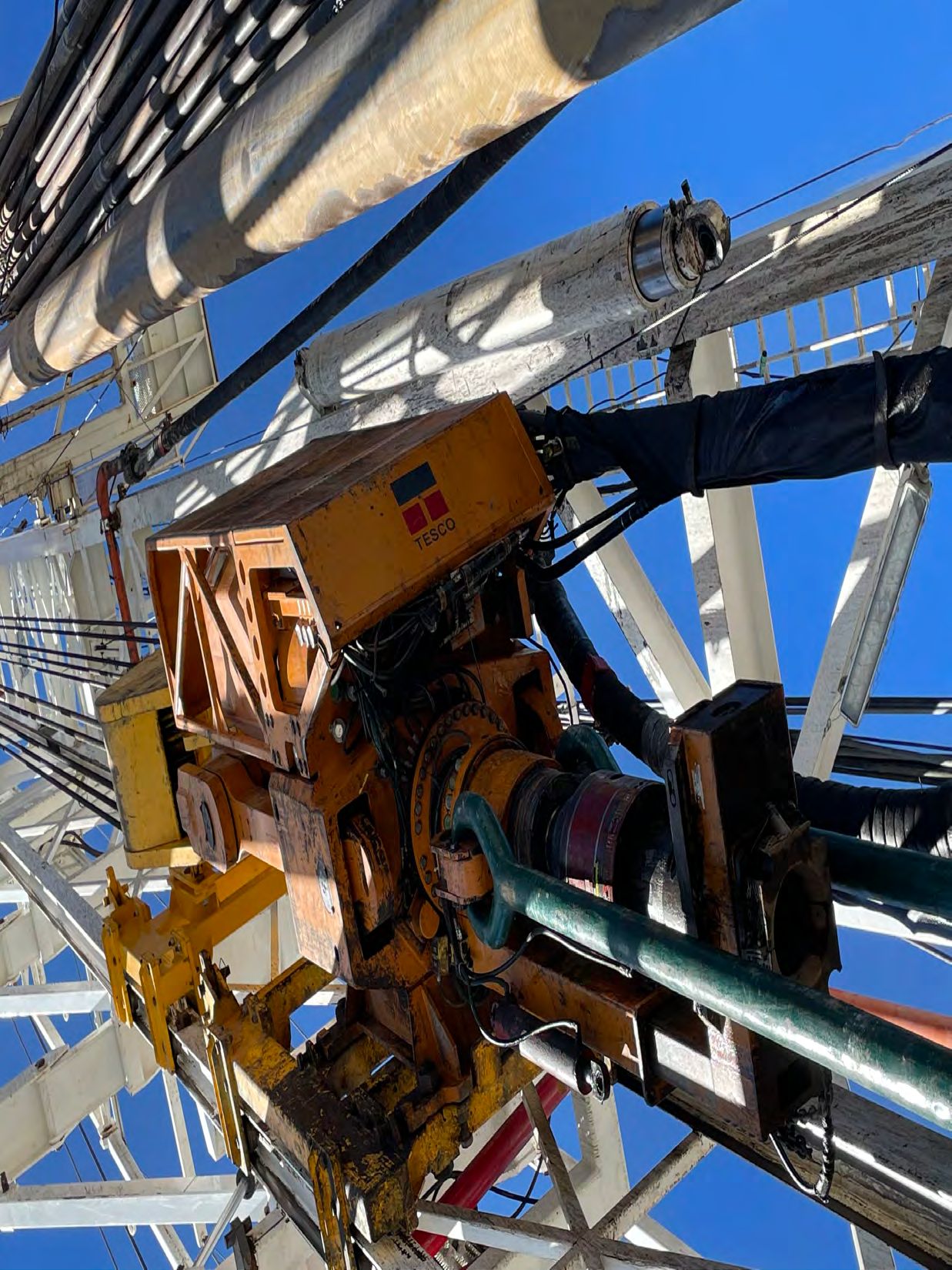

  • Top DriveTesco ESI 1350, 750 ton
  • Top Drive Power1,150 HP
  • Iron RoughneckVarco ST-100
  • CatwalkAxiom hydraulic
🛡️

Well Control

  • Annular13-5/8 in x 5,000 psi
  • Rams(2+1) 13-5/8 in x 10,000 psi, shear rams
  • Accumulator360 gal, 3,000 psi, 7-station
  • TrimNACE
Equipment Gallery

Rig Photos

Capabilities

Key Advantages

Complete Data

Full Equipment Status

Interested in This Rig?

Contact Total Drilling Supply LLC for pricing and to arrange inspection.
